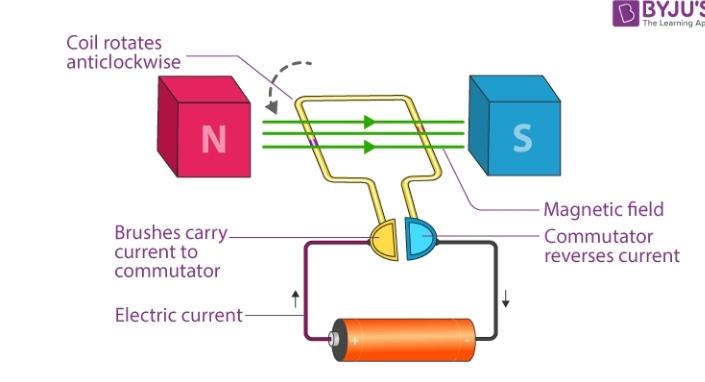

Here’s a clear diagram illustrating the basic components of a simple DC electric motor:

---

Example: A Simple DC Motor

A common real-world instance of an electric motor is the universal motor, frequently found in household appliances like blenders, vacuum cleaners, and hand-held power tools. It’s called “universal” because it can run on either AC or DC power and delivers high speed and strong torque—ideal for portable, high-performance tools.

---

How It Works — Fundamental Principles

1. Basic Principle (Electromagnetism):

A current-carrying conductor (like a coil of wire) placed in a magnetic field experiences a force—this is Fleming’s left-hand rule in action. The interaction between the magnetic field and the current produces torque, causing rotation.

2. Key Components (as shown in the diagram):

Power Source: Typically DC battery or AC supply converted to DC for brushed motors.

Field Magnets: Permanent magnets or electromagnets that provide a steady magnetic field.

Armature (Rotor) and Coil: The rotating element where current flows through coils, creating its own magnetic field.

Commutator and Brushes: The commutator is a split-ring that reverses current direction in the coil every half-turn, while brushes transmit current from the stationary power source to the rotating commutator. This continuous reversal keeps the motor spinning in one direction.

3. Operation Mechanism:

When power is applied, current flows through the coil, generating a magnetic field.

That field interacts with the magnet's field, producing a torque that starts the coil spinning.

After half a revolution, the commutator reverses the current direction, which flips the magnetic interaction and keeps the rotation going.

4. Simplified Explanation (Reddit ELI5 style):

> "A simple DC motor is a coil the current is sent through. That builds up a magnetic field and the ‘anchor’ magnet aligns with the field by turning 180°. Then you switch the direction of the current through a sliding contact (commutator) so the magnetic field changes direction and the anchor has to rotate another 180° to be aligned again."

This captures the essence of how the commutator and magnetic field interaction drives continuous rotation.

---

Summary at a Glance

Component Function

Power Source Provides electricity (DC or AC adapted)

Field Magnets Create the fixed magnetic field

Armature Coil Generates a magnetic field when current flows

Commutator & Brushes Reverse current each half turn to maintain rotation

---

Electric motors are foundational in engineering, powering everything from fans, blenders, and power drills to industrial machinery and electric vehicles.
