How to build a small transistor radio?

Education 4 days ago
  • Prince Sols
    Thread Thumbnail

    Building a small transistor radio is a fun and educational electronics project! You can make a simple AM radio receiver using just a few basic components. Below, I’ll guide you through the steps and the working principle in a clear, beginner-friendly way.


    🧠 Basic Idea

    A transistor radio works by:

    1. Receiving radio signals through an antenna.

    2. Tuning to one frequency using a variable capacitor and coil (tuned circuit).

    3. Detecting the audio signal from the radio wave using a diode.

    4. Amplifying the sound using a transistor and sending it to a speaker or earphone.


    🧩 Components Needed

    Component Function Quantity
    Ferrite rod antenna with coil Picks up AM signals 1
    Variable capacitor (≈ 100–365 pF) Tunes stations 1
    Germanium diode (1N34 or 1N60) Detects the signal 1
    NPN transistor (e.g. 2N2222, BC547) Amplifies audio 1
    Resistor (10 kΩ) Biasing transistor 1
    Capacitor (10 µF electrolytic) Coupling audio 1
    Earphone or small speaker (high impedance) Output sound 1
    9V battery + clip Power supply 1
    Breadboard or PCB, wires Assembly

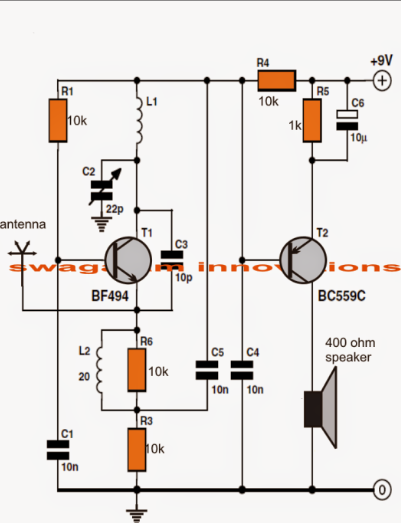

    ⚙️ Circuit Overview

    Here’s what happens step-by-step:

    1. Antenna + Coil + Variable Capacitor → Tuning Circuit

      • This LC circuit selects the desired AM frequency.

      • As you turn the capacitor, it tunes in different stations.

    2. Diode → Detector

      • The diode demodulates the radio wave, extracting the audio signal (voice/music).

    3. Transistor → Amplifier

      • The transistor increases the weak audio signal so you can hear it clearly.

    4. Earphone or Speaker → Output

      • Converts the amplified electrical signal into sound.


    🪜 Step-by-Step Assembly

    1. Build the Tuning Section

      • Connect the coil and variable capacitor in parallel.

      • Connect one end of this LC circuit to ground, and the other end to the diode input.

    2. Add the Diode Detector

      • Connect the cathode (strip end) of the diode to the tuned circuit output.

      • Connect the anode to the transistor base through a 10 kΩ resistor.

    3. Amplify the Audio

      • Connect the transistor emitter to ground.

      • Connect the collector through a 10 µF capacitor to one side of the earphone/speaker.

      • The other earphone terminal goes to battery positive (9 V).

      • Connect battery negative to ground.

    4. Power and Test

      • Turn the variable capacitor slowly — you should hear stations!

      • Adjust coil turns or antenna length for better reception.


    📻 Optional Improvements

    • Add a second transistor for louder audio.

    • Use a larger ferrite rod for better signal pickup.

    • Add a volume control (potentiometer) between detector and amplifier.


    🧰 Tools You’ll Need

    • Soldering iron (if using PCB)

    • Small pliers and wire cutter

    • Breadboard (for testing before soldering)


    🔋 Power Tips

    • Use a 9V battery for portable operation.

    • To save battery, disconnect power when not in use.
