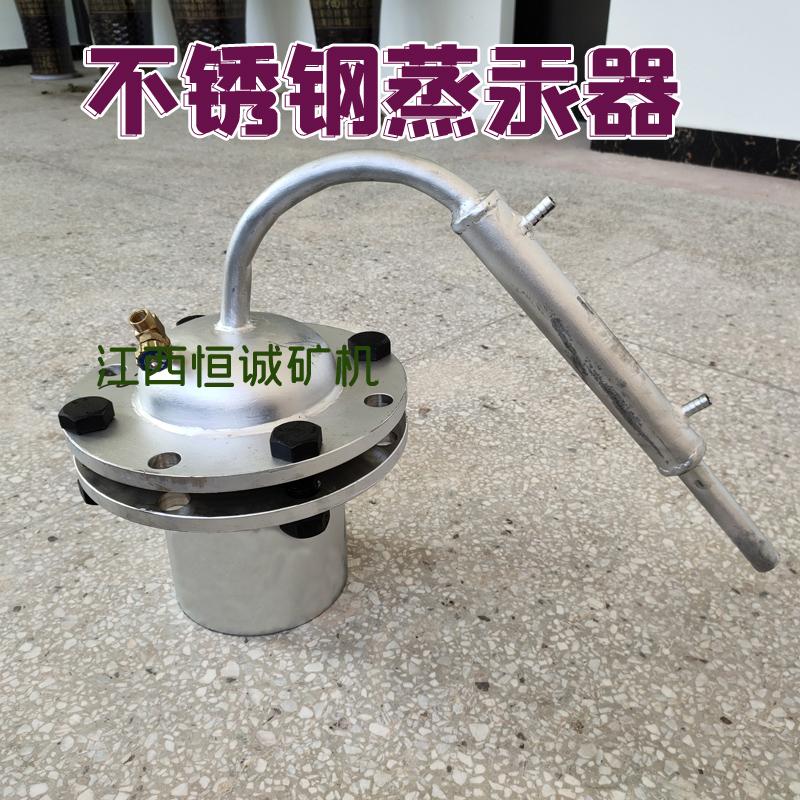

Portable Mercury Retort Distill Machine for Pure Gold

In the world of small and medium-scale gold mining, efficiency, safety, and environmental responsibility are crucial. One indispensable tool that combines all three is the **Portable Mercury Retort Distill Machine**—a compact, high-efficiency device designed to safely separate mercury from gold amalgam. This innovative equipment is essential for miners seeking to recover pure gold while minimizing mercury exposure and environmental contamination.

What is a Mercury Retort Distill Machine?

A mercury retort is a specialized distillation apparatus used to recover mercury from gold amalgam, commonly known as *mercury paste*. In small-scale mining operations, mercury is often used to capture fine gold particles, forming an amalgam that needs to be purified. The retort uses controlled heat to vaporize the mercury, which is then condensed and collected for reuse, leaving behind pure gold.

The **Portable Mercury Retort Distill Machine** is particularly designed for small to mid-sized mining operations. It provides a practical, safe, and cost-effective way to recover mercury while producing high-purity gold.

Working Principle

The machine operates on a simple yet effective principle—**distillation**. Mercury has a much lower boiling point (356°C) than gold’s melting or boiling point, which allows the two metals to be separated through controlled heating.

The process involves placing the solid mercury-gold amalgam into a sealed steel or aluminum retort chamber. The chamber is connected to a cooling tube or condenser. The retort is heated using a fuel source such as coal, gas, or an electric furnace. As the temperature rises to around 400–450°C, mercury vaporizes and travels through the condenser tube, where it cools and condenses back into liquid form. The recovered mercury drips into a water container, ready for reuse.

Meanwhile, the remaining solid in the retort is pure gold—clean, bright, and ready for further refining. For optimal separation, some miners raise the temperature to 750–800°C during the final stage of distillation, ensuring nearly 99% mercury recovery efficiency.

Key Advantages

The **Portable Mercury Retort Distill Machine** offers several notable advantages that make it ideal for field use:

1. Compact and Portable
   Its small size and lightweight design make it easy to carry and relocate between mining sites. This portability is especially valuable for artisanal and small-scale miners working in remote locations.

2. High Distillation Efficiency
   The device achieves excellent separation results, recovering over 99% of mercury while leaving behind pure gold. This efficiency reduces waste and operational costs.

3. Easy Operation
   The retort’s simple design allows even non-technical users to operate it safely. It requires minimal setup and straightforward heating procedures.

4. Integrated Water Cooling System
   The condenser pipe includes a water-cooling feature to ensure mercury vapor condenses efficiently, improving recovery and preventing vapor escape.

5. Safety and Environmental Protection
   A key innovation of the modern portable retort is the **air exhaust and pressure relief design**, which prevents residual mercury vapor from escaping after distillation. This reduces health risks and environmental pollution.

Technical Parameters

 Specification    | Dimension (mm)    | Mercury Paste Capacity (Kg) | Weight (Kg) |    |
| ---------------- | ----------------- | --------------------------- | ----------- | -- |
| Cylindrical Type | Diameter: 140–150 | Length: 200                 | 10–15       | 18 |

These specifications make it clear that the device is both compact and robust, offering sufficient capacity for small-batch processing while remaining light enough for field portability.

Applications

The Portable Mercury Retort Distill Machine is widely used in:

* Small and medium-sized gold mining operations
* Laboratory testing for gold recovery processes
* Educational and research facilities studying metallurgical separation techniques

It is a practical solution for miners aiming to comply with environmental standards, improve mercury recycling, and produce high-quality gold without resorting to unsafe burning or open-air heating methods.

Why Choose a Portable Retort?

Compared to large industrial distillation furnaces, the portable retort offers unmatched flexibility. It can be easily set up on-site, powered by common heat sources, and maintained with minimal effort. Its cost-effectiveness and efficiency make it a valuable investment for responsible gold recovery.

Conclusion

The **Portable Mercury Retort Distill Machine** represents a crucial step toward safer and more sustainable gold refining. By utilizing the principle of mercury distillation, it enables miners to recover pure gold efficiently while minimizing mercury loss and exposure. Compact, efficient, and user-friendly, this machine empowers small-scale miners to achieve professional-level refining results with minimal environmental impact.

In today’s era of responsible mining, adopting such technology isn’t just about improving productivity—it’s about protecting health, the environment, and the future of the mining industry.
